Housings & Brackets

Part #	Description		Price
FH001		White 1/4" Filter Housing for 9.75" X 2.5" Cartridges	$23.00
FH002		Black 1/4" Filter Housing for 9.75" X 2.5" Cartridges	$23.00

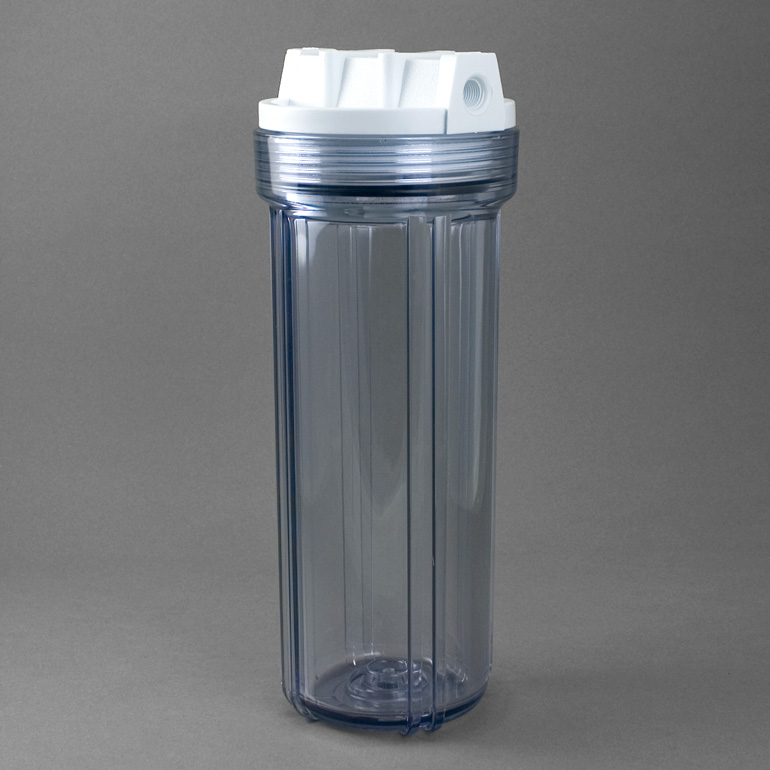

FH003		Clear 1/4" Filter Housing  for 9.75" X 2.5" Cartridges	$27.00
MB005		Steel mounting bracket for 2 housings.	$14.00
MB003		Steel mounting bracket for 3 housings.	$16.00
MM999		Membrane Housing.  (Ports are end, side, side.)	$12.00
MB905		Stainless Steel Filter Housing Screw Packet. Contains four #10 Screws, 3/4" long, to mount filter housing on bracket. Use this set if you are attaching a housing without a membrane clip.	$1.00
MB906		Stainless Steel Filter Housing Screw Packet. Consists of four screws: Three #10 Screws, 3/4" long, and one #10 Screw 1" long. Use this packet to mount filter housing on bracket when one of the screws also holds a membrane clip.	$1.00

Shutoff Valves

More about Reverse Osmosis Shutoff Valves

Part #	Description		Price
RC301		Payne Automatic Shutoff Valve (Jaco-style fittings, nuts included) Horseshoe flow pattern with In/Out on one side and Tank/Tank on the other.	$15.00
RC300		Payne Automatic Shutoff Valve (John Guest-style fittings). Horseshoe flow pattern with In/Out on one side and Tank/Tank on the other.	$18.00
RC304		Flowmatic Automatic Shutoff Valve (Jaco-Style fittings with nuts included). Has straight-through flow pattern.	$15.00
RC303		Flowmatic Automatic Shutoff Valve (John Guest-style fittings). Has straight-through flow pattern.	$16.00

Fittings, Tubing & Accessories

More about Tubing and Fittings

Part #	Description		Price

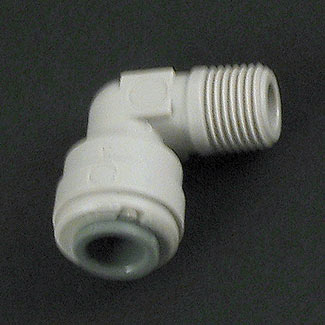

JG033		John Guest Fixed Elbow, 1/4" male pipe thread X 1/4" tube. Fits filter housings, but not membrane housings. Can also be used for inline post filters.	$3.05
JG032		John Guest Fixed Elbow, 1/8" male pipe thread X 1/4" tube. Fits membrane housings.	$2.70
JG002		John Guest Fixed Connector, 1/4" Pipe X 1/4" Tube. Fits filter housings and inline postfilters.	$1.95
JG001		John Guest Fixed Connector, 1/8" Male Pipe thread X 1/4" Tube. Fits membrane housings. Makes a straight connection rather than an elbow.	$1.75
JG011		John Guest 1/4" Tube Tee. Connects three 1/4" tubes.	$3.85
JG012		John Guest 3/8" Tube Tee. Connects three 3/8" tubes.	$4.70
JG022		John Guest 1/4" Plug-In Elbow. Plugs into a straight 1/4" JG fitting to make a swiveling elbow. A handy gadget to have.	$2.75
JG024		John Guest 3/8" Plug-In Elbow. Plugs into a straight 3/8" JG fitting to make a swiveling elbow.	$4.60
See all of our John Guest fittings here!
JG024		John Guest 3/8" Plug-In Elbow. Plugs into a straight 3/8" JG fitting to make a swiveling elbow.	$4.60
FT033		Jaco Fixed Elbow, 1/4" male pipe thread by 1/4" tube. This fits most filter vessels (but not membrane housings). Can also be used for inline post filters.	$1.50
FT032		Jaco Fixed Elbow, 1/8" male pipe thread by 1/4" tube. This fits most membrane housings (but not filter vessels).	$1.50
FT002		Jaco Fixed Connector, 1/4" Male Pipe Thread X 1/4" Tube. Fits filter housings and inline filters.	$1.75

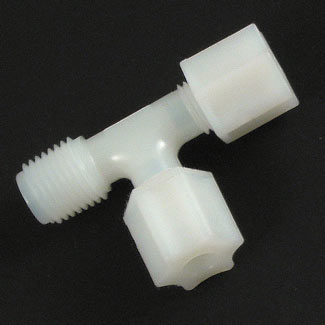

FT011		Jaco 1/4" Tube Tee.  Connects three 1/4" tubes.	$1.75
FT012		Jaco 3/8" Tube Tee.  Connects three 3/8" tubes.	$4.50
FT045		Jaco 1/4" Male Run Tee. Connects two 1/4" tubes to a 1'4" fixed female pipe thread. (Commonly used to connect tank and permeate lines to inlet of inline post filter.)	$2.70
TB001		1/4" Polyethylene Tubing.  NSF Standard 51/61 Certified. John Guest Brand. If you don’t specify, you’ll get white. If you ask, you may substitute black, red, yellow, or orange. Sorry, we no longer stock olive drab.	$0.15 (per foot)
TB002		3/8" Polyethylene Tubing.  NSF Standard 51/61 Certified. John Guest Brand. If you don’t specify, you’ll get white. If you ask, you may substitute black.	$0.25 (per foot)
TB100		Tube inserts for 1/4" Tubing. Must use with Jaco fittings.  Do not use with John Guest fittings.	$0.10 (per foot)
TB101		Tube inserts for 1/4" Tubing. Must use with Jaco fittings.  Do not use with John Guest fittings.	$0.10

Mounting Clips

Part #	Description		Price
RC208		Membrane Clip. Attaches membrane housing to the filter bracket. Most RO units use two membrane clips.	$2.00
RC200		Filter-to-Membrane Clips. Attach standard 10" or 6" post filters to the membrane housing. Two clips are normally used for a filter. A single clip will attach a Payne shutoff valve (see above) to the membrane housing.	$2.00

Tanks & Tank-Valves

More About Tanks and Tank Valves

Part #	Description		Price
TA005		4-Gallon Metal Reverse Osmosis Storage Tank. This is a standard-sized undersink tank. It is 11" in diameter by 15" from the floor to the top of the valve. The valve is not included, but can be ordered below. If you are replacing an existing tank, your present tank valve will fit our tank.	$56.00
Go here for More RO Tanks
JG014		John Guest 1/4" RO Tank Valve. Fits all standard RO tanks and connects to 1/4" tubing.	$7.00
JG015		John Guest 3/8" RO Tank Valve. Fits all standard RO tanks and connects to 3/8" tubing.	$7.00

Check Valves

Check Valve Discussion

Part #	Description		Price
RC001		John Guest-style Inline Check Valve, 1/4".  Inserts into 1/4" Tubing with Quick Connect fittings. Check valves allow water to flow forward but not backward. Every RO unit has at least one, and we put two on our best units.	$14.00
RC002		John Guest-style Inline Check Valve, 3/8". Inserts into 3/8" Tubing with quick connect fittings. It’s just like the part above, but it inserts into 3/8" tubing.	$14.00
RC003		Insert Style Check Valve.  Inserts into John Guest Elbow.	$3.50
RC004		Insert Style Check Valve. Inserts into Jaco Elbow.	$3.50

Flow Restrictors

Explanation of Flow Restrictors

Capillary-Style Inline Flow Restrictors. Insert into 1/4" Drain Line. The number indicates the flow rate, in milliliters per minute. The flow restrictor should match your membrane's production rate.
FR001	180 ml/minute.	$7.00
FR002	250 ml/min	$7.00
FR003	350 ml/min	$7.00
FR004	420 ml/min	$7.00
FR005	525 ml/min	$7.00
FR006	800 ml/min	$7.00

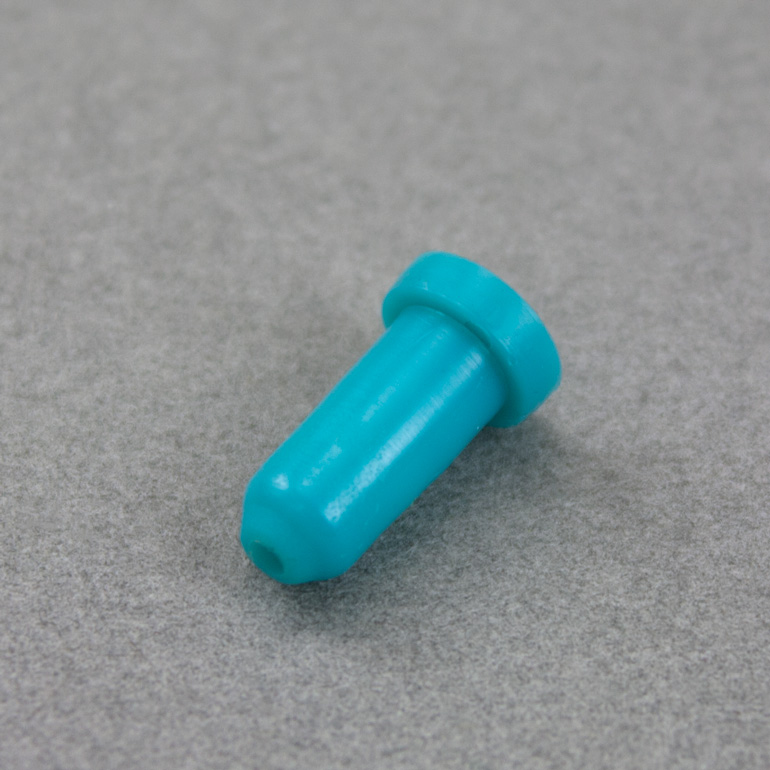

Insert Style Flow Restrictor. Inserts into either Jaco or John Guest membrane housing elbow w/ 1/8" treaded fitting. The number indicates the flow rate in gallons per day. The flow restrictor must match your membrane's production rating. Pictured at left is the FR203 (125 gpd green John Guest Style); the colors vary.
Jaco Style
FR100	50 gpd Yellow	$2.50
FR101	70 gpd Blue	$2.50
FR102	100 gpd Red	$2.50
FR103	125 gpd Green	$2.50
FR104	150 gpd Black	$2.50
FR105	200 gpd Brown	$2.50
John Guest Style
FR200	50 gpd Yellow	$2.50
FR201	70 gpd Blue	$2.50
FR202	100 gpd Red	$2.50
FR203	125 gpd Green	$2.50
FR204	150 gpd Black	$2.50
FR205	200 gpd Brown	$2.50

Faucets

We carry several faucets that will replace the standard equipment faucet on any reverse osmosis unit, regardless of brand. Below are our least expensive faucets, one in ‘air gap’ style and one in non-air gap. Go here for our Full faucet list. This page shows a variety of faucets and explains and discusses installation, the drilling of holes, the concept of the air gap faucet, and other grippingly interesting topics.

Part #	Description		Price
LF700		Tomlinson Pro-Flo Long Reach Ledge Faucet, Non Air Gap	$38.00
LF701		Tomlinson Pro-Flo Long Reach Ledge Faucet, With Air Gap	$48.00

Inlets and Drains

Part #	Description		Price
IV100		Standard Saddle Valve. This valve can be used to tap into copper pipe from 3/8" to 5/8" diameter. It comes with hardware to make a standard 1/4" compression fitting, but a quick connect faucet/refrigerator adaptor in either 1/4" or 3/8" can be screwed onto the compression tread to make an easy connection. See parts number jg026 and jg027 on our fittings page.	$16.00
IV103		MAX ADAPTER inlet adapter. Use with flexible water lines. This adapter comes with inline valve (see jg039 below) and tubing. Everything you need to connect a 1/4" inlet line to the RO unit. The adapter is for use on the lower end of flexible water lines.	$16.00
IV101		Murdock Inlet Adapter. Use with flexible water lines. This adapter comes with inline valve (see jg039 below), plug-in elbow, and tubing. Everything you need to connect a 1/4" inlet line to the RO unit. The adapter is for use on the upper end of flexible water lines.	$16.00
RC100		Drain-Saddle with 1/4" John Guest elbow. When installed, you can just push your 1/4" drain tubing into the fitting. If you prefer a Jaco (plastic compression nut) style fitting, just ask for a substitution in the comments section on the cart. The price is the same.	$9.00
RC103		Drain-Saddle with 3/8" John Guest elbow. When installed, you can just push your 3/8" drain tubing into the fitting. If you prefer a Jaco (plastic compression nut) style fitting, just ask for a substitution in the comments section on the cart. The price is the same.	$14.00
JG039		Inline Valve, 1/4". With John Guest fittings. Inserts into 1/4" tube. A very handy valve. Use as inlet valve, a shutoff valve for the icemaker line, anywhere an inline valve is needed.	$6.00
JG040		Inline Valve, 3/8". Inserts into 3/8" tubing anywhere you need a valve.	$6.00

R.O. Accessories

Part #	Description		Price
RC400		HMDigital TDS Tester, measures 0 to 1000 parts per million total dissolved solids. TDS Tester Discussion.	$33.00
LP402		Watts Leak Protector. Detects leaks and turns off water supply when moisture is detected. Click here for info.	$18.00
WR001		Standard Filter Wrench for standard-sized RO vessels. The standard wrench fits Flowmatic (and many other brands) housings. If you have a Pentek (Ametek) unit, specify Pentek in the comments section on the shopping cart when ordering.	$3.00
