Chemical Feed Pumps & Supplies

Questions?

Call us at (888) 382-3814

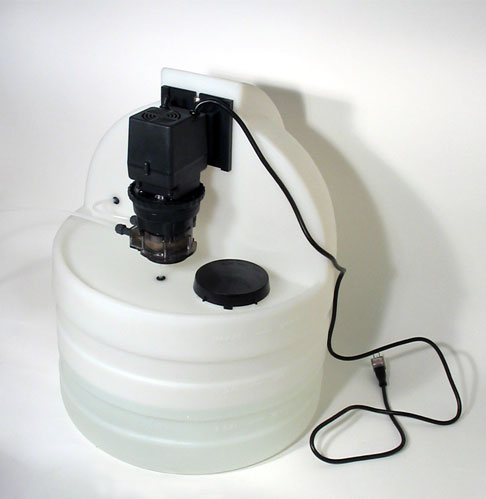

Classy Stenner Solution Tank, designed to work with the Stenner Peristaltic Pump. Less expensive "generic" solution tanks are also available.

Pure Water Products does basic water testing at no charge. If you'd like, send us a sample.


Peristaltic Chemical Feed Pumps, Tanks, Hydrogen Peroxide, Soda Ash, Static Mixers, Iron Sequestering Agents, and more.


Chemical/Mineral feed systems are among the most effective, versatile, and cost-efficient of water treatment devices. Depending on the chemical agent used, the same equipment can treat bacteria, iron, manganese, low pH, hydrogen sulfide (rotten egg smell), and many other water problems.

Multiple problems may even be addressed with a single treatment system. For example, if the pH of your water is too low for effective iron removal, you can increase the pH by injecting soda ash, and add chlorine to oxidize the iron in a single operation.

And equipment purchased for one purpose can be easily converted to another. The high quality Stenner peristaltic pump can be used to feed chlorine or soda ash, for example, but is also capable of feeding hydrogen peroxide without losing its prime.

Feed systems are simple to install and to operate. (Go here for a diagram of a typical feed pump setup.)

We've divided this page into parts. Part A contains the essential equipment that any Stenner injection system needs to have. Part B includes useful and sometimes necessary add-ons. Part C lists some chemicals that can be injected with an injection system. Part D offers an informational summary of suggested chemical feed setups for common water problems.

What you must have:

  • A solution tank to hold the solution you're going to inject into your water.

  • A pump to feed the solution into your water line.

  • A simple tee connection to provide an entry port for the solution into your water line.

Some useful and often necessary additions:

  • A holding, or retention tank, to allow the agent you've injected more residence time to do its work. Adding retention time always improves efficiency, and with some treatments — like using chlorine to kill bacteria — it's essential.

  • A “static mixer,” which can replace the simple tee connection and greatly improve performance by mixing the solution quickly and thoroughly with your water.

  • Filters are sometimes needed to remove the “precipitated” contaminant (iron, for example), or to remove an injected chemical and its by-products after it has done its work. Chlorine, for example, can create some very undesirable spin-off chemicals.

Part A:
Essential Equipment: Pumps & Tanks

A Stenner Peristaltic Pump can be used for virtually any chemical feed application. All of our Stenner Pumps are basically the same, with minor differences noted in the chart below. They are all 100 PSI, with an easily adjustable feed rate.

They can be easily maintained with snap-on parts, and every pump comes with full instructions and installation kit. Pumps require easy routine maintenance.

Stenner Peristaltic Pumps

Stenner Peristaltic Pumps
Stenner Peristaltic Pumps

All of our Stenner Pumps are basically the same, with minor differences noted in the chart below. They are all 100 PSI, with an easily adjustable feed rate.

10 GPD
Part # ci006
(Call for pricing.)
(Call to order.)
Part # ci007
(Call for pricing.)
(Call to order.)
2 GPD
Part # ci008
(Call for pricing.)
(Call to order.)
Part # ci009
(Call for pricing.)
(Call to order.)
17 GPD
Part # ci001
(Call for pricing.)
(Call to order.)
Part # ci002
(Call for pricing.)
(Call to order.)

Solution Tanks & Accessories

Part # ci003
Solution Tank, 15 gallon
(Call for pricing.)
(Call to order.)
Part # ci004
Solution Tank, 35 gallon
(Call for pricing.)
(Call to order.)
Part # ci005
Stenner Solution Tank, 15 Gallon
(Call for pricing.)
(Call to order.)
Part # ci903
Chemical Solution Tank Bulkhead Fitting
(Call for pricing.)
(Call to order.)

Part B: Useful and Often Necessary Items

Retention Tanks

Part # ta200
WellMate 30 Gallon Retention Tank, 16" X 44"
(Call for pricing.)
(Call to order.)
Part # ta201
WellMate 40 Gallon Retention Tank, 16" X 56"
(Call for pricing.)
(Call to order.)
Part # ta202
WellMate 80 Gallon Retention Tank, 21" X 67"
(Call for pricing.)
(Call to order.)
Part # ta203
WellMate 120 Gallon Retention Tank, 24" X 73"
(Call for pricing.)
(Call to order.)

Inline Mixer

Replaces a standard PVC tee. Greatly enhances and speeds up chemical reactions by creating turbulence. Comes with 1" female pipe thread.

$119.00
Part # ci201

Rain Roof

Part C:
Products That Can Be Injected With Our Chemical Feeder Systems

Note: With the exception of hydrogen peroxide, the products below can be shipped without hazardous materials surcharge. In most cases, we can sell a single bottle. Please inquire about availability.

Chlorine pellets, which require hazardous shipping procedures, are not listed here but are listed for sale on our WellPro Dry Pellet Chlorinator page. If you plan to inject liquid chlorine with a pump, regular household bleach from the supermarket is your most economical source. (See our handy Chlorine Dosage Chart.)

Pro Neutra 7 soda ash. Sold only in cases of 4 seven-pound bottles. When injected, soda ash neutralizes the pH of acidic water.

$116.00
Part # fm301

Soda ash in one 50 lb. box. When injected, soda ash neutralizes the pH of acidic water.

$189.00
Part # fm019

Hydrogen Peroxide in one-gallon bottle. Sold only in cases of four. Can be injected to kill bacteria or to oxidize iron, manganese and hydrogen sulfide. This is 7% hydrogen peroxide, the perfect strength for direct feed systems.

$68.00
Part # fm300

Part D: Suggested Chemical Feed Setups

Below is a brief summary of problems that you might treat with a chemical feeder system. This is not an exhaustive list and it is not a performance guarantee. Here, as with any water treatment strategy, results can depend on many variables. It's often best to get advice before ordering.


Problem Suggested Solutions
Bacteria
  1. A Chlorine Feed system from this page.

  2. A Chlorine Feed system from this page followed by an optional carbon filter to remove the chlorine.

  3. A Hydrogen Peroxide feed system from this page with or without an optional carbon filter. Please note that although Hydrogen Peroxide is a powerful oxidizing agent, most water treatment professionals prefer chlorine to hydrogen peroxide as a treatment for bacteria.

  4. Alternative treatments you might want to consider:

    1. Ultraviolet Disinfection, a very effective chemical-free alternative to chlorine.

    2. Dry Pellet Chlorination, with or without an optional carbon filter.

Iron &/or Manganese
  1. A Chlorine Feed System from this page followed by a carbon filter to to remove the chlorine and the iron. With iron removal, a backwashing filter is necessary.

  2. Or, a Hydrogen Peroxide feed system from this page followed by a carbon filter to remove the iron.

  3. Alternative Treatments you might want to consider:

    1. Dry Pellet Chlorination, with a carbon filter.

    2. A Birm Filter with or without aeration as a pretreatment.

    3. Aeration followed by a birm or carbon filter.

    4. A water softener.

Hydrogen Sulfide
(Rotten Egg Smell)
  1. A Chlorine Feed system from this page followed by a carbon filter.

  2. Or, a Hydrogen Peroxide feed system from this page followed by a carbon filter.

    In both items above, if no iron is present in the water, a cartridge-style carbon filter will usually work.

  3. Alternative treatments to consider:

    1. Aeration followed by carbon filtration.

    2. Dry Pellet Chlorination followed by a carbon filter.

Iron
(Stains on Driveways & Buildings)
  1. A phosphate feed system from this page.

  2. Alternative treatment to consider: Pro Rust Out to remove existing stains. (Listed below at the bottom this page.)

Low pH
  1. A soda ash feed system from this page.

  2. Alternative treatment to consider: Backwashing Calcite Filter.

Questions about dosages? Go here for a handy chemical feed system dosage chart.

Related Product: Rust Stain Removal

While not to be injected with a feeder pump, Pro-Rust Out is a handy related product for removing existing Iron (rust) stains.
